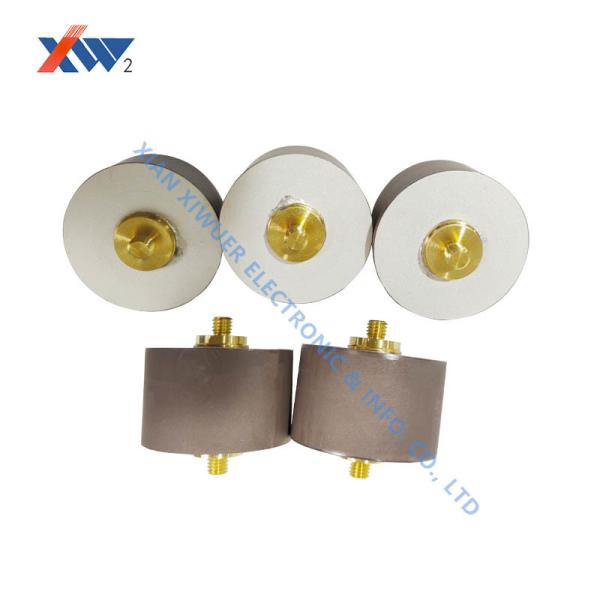

High - Voltage Doorknob Capacitors" CT8-2 40kV620pF|

Name: High Voltage Doorknob Capacitorsquot CT82 40kV620pF
Brand: XIWUER
Price: 1 USD

Brand Name : XIWUER

Model Number : CT8-2 40kV620pF

Certification : ISO9001,ISO14001,ISO45001,CCC

Place of Origin : XIAN, CHINA

MOQ : 5

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 3,000,000 pcs a year

Delivery Time : 5~10days

Packaging Details : Carton

Operating temperature range : －40℃ ～＋85℃

－40℃ ～＋85℃ : ≤0.0040

Withstand voltage : 1.5Ur·1min

Contact Now

Our high - voltage door knob capacitors, developed by Xi'an Xi'erwu Electronic Information Group Co., Ltd., are made of high - quality materials. They feature a low dissipation factor of only 0.1% in the frequency range from 20kHz to 1000kHz. With an N4700 (T3M) class 1, strontium - based ceramic dielectric, they have a negligible piezoelectric / electrostrictive effect. These capacitors are mainly used in high peak current and high repetition rate circuits, such as high - voltage doublers, voltage protection circuits, and laser generators.

Applications are:
Gas laser
DC HV power supplies
Lightning arresters
Voltage distribution systems
Electron Microscopes
Synchroscopes
Electrostatic Coating Machines

High - Voltage Doorknob Capacitors" CT8-2 40kV620pF|

Part No.	Capacitance (pF)	Rated Voktage(KVDC)	Charge and discharge voltage (KV)	Dimension(mm)					Operating temperature range
Part No.	Capacitance (pF)	Working voltage	Charge and discharge voltage (KV)	D	H	L	M	d	Operating temperature range
CT8-1	390	15	10	20	19	28	4	8	－40℃ ～＋85℃
	500			31	20	35	5	10
	1000			31	18	33	5	10
	2500			40	13	22	5	12
	5600			60	21	27	4	12
	68	20	15	20	25	29	4	8
	1000			32	13	22	4	10
	1800			45	22	32	4	12
	3300			60	19	27	4	12
	4000			50	15	24	/	/
	10000			80	23	32	/	/
	50	30	20	20	12	24	4	8
	330			20	27	36	4	8
	400			28	28	37	4	8
	500			26	17	25	4	8
	1000			45	23	32	/	/
	1000			31	17	21	/	/
	2000			50	23	32	4	12
	2700			60	20	29	/	/
	4000			60	19	28	5	12
	5000			74	25	30	5	12
	3800	35	20	74	23	32	/	/
	140	40	30	20	32	41	4	8
	200			20	33	42	/	/
	300			26	33	42	4	8
	820			38	27	31	/	/
	500			28	33	43	4	8
	1000			40	27	36	4	12
	3300			65	27	36	/	/
	4400			80	27	36	5	12
	5600			80	23	28	5	12
	7500			80	24	28	6	12
	570	45	30	36	24	32	4	12
	710			40	31	39	4	10
	1000			50	32	36	4	12
	330	50	35	26	31	39	4	8	－40℃ ～＋85℃
	600			45	34	43	4	12
	1000			50	27	36	/	/
	2000			60	32	41	5	12
	3000			74	29	38	5	12
	4000			74	34	38	5	12
	5000			80	34	38	5	12
	500	60	40	38	40	44	4	12
		60	40
	1000			50	39	47	5	12
