30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor

Product Categories
XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor

  • 1
  • 2

Brand Name : XIWUER

Model Number : CT8-1-30kV-2700PF

Certification : ISO9001,ISO14001,ISO45001,CCC

Place of Origin : XIAN, CHINA

MOQ : 5

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 3,000,000 pcs a year

Delivery Time : 5-7 days

Packaging Details : Carton

Rated voltage : 30kV

Capacitance : 1kV·1min>100000MΩ

Dielectric loss : 25℃ tg δ≤ 0.0020

Withstand voltage : 60KVDC·60S (in insulating oil)

Capacity temperature change rate : -40℃-80℃

Contact Now

30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor

PRODUCT DESCRIPTION
In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high-voltage ceramic capacitors, and has been widely used. High-voltage ceramic capacitors have become an indispensable component of high-power high-voltage electronic products.

Name: doorknob style high voltage ceramic capacitor
Appearance of small size
Relative to other material more portable and reliable
Rapid pulse charge and discharge performance
Capacity with low temperature gradient
Under high or low temperature applications
Different shapes can be customized

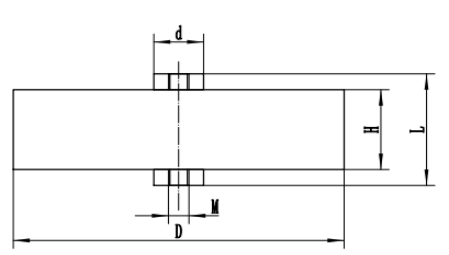

DIMENSIONS

30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor


L=25±2mm H=21±2mm

D=80±2mm d=12±0.2mm M5 thread



Technical Parameter


Typical models electrical parameter:
Sq Model Number Dielectric Loss Withstand Voltage Insulation Resistance Dimension(mm)
D H L D M
1 20kV-2000pF ≤0.004 1.5Ur?60s ≥1.0 x 106MΩ 45 19 23 12 5
2 20kV-10000pF 65 15 19 12 5
3 20kV-18000pF 80 17 25 12 5
4 30kV-1000pF 45 24 32 12 4
5 30kV-2700pF 60 20 28 12 4
6 30kV-12000pF 74 18 26 12 5
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 100kV - 1500pF(Insulator Type) 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5

Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect



CERTIFICATE

30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor


Product Tags:

High Voltage Pulsed Doorknob Capacitor



30kv Doorknob Capacitor



2700pF Doorknob Capacitor


Wholesale 30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor from china suppliers
